QSL1000 Meja lif spring& QAL1000 Pemuat beg udara pantas

• i-Angkat No.		1313601	1313604
  Model		QSL1000	QAL1000
  Kapasiti	kg (lb.)	200-2000(440-4400)	100-2000(220-4400)
  Tinggi dimampatkan	mm (dalam.)	240(9.4)	265(10.4)
  Tinggi dipanjangkan	mm (dalam.)	710(28)	710(28)
  Cincin berpusing, dia di luar.	mm (dalam.)	1110(44)	1110(44)
  Cincin berputar, di dalam dia.	mm (dalam.)	1035(40.7)	1035(40.7)
  Panjang bingkai asas	mm (dalam.)	1150(45.3)	1150(45.3)
  Lebar Rangka Asas	mm (dalam.)	930(36.6)	930(36.6)
  Pilihan		Angkat meja penggerak

Butiran QAL1000:

It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table

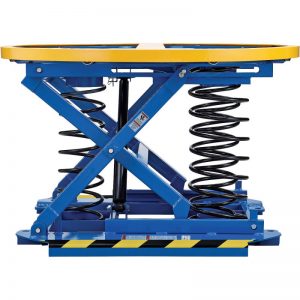

QSL1000 Details:

The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be  changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

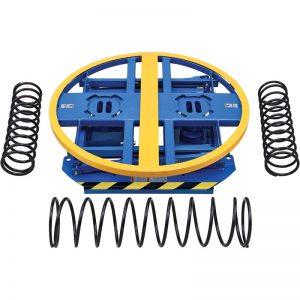

Ia merangkumi 3 mata air dengan ukuran yang berbeza, anda boleh mengelompokkannya secara bebas mengikut kapasiti dan ketinggian yang anda perlukan. Dilengkapi dengan "saku" forklift yang membolehkan pengangkutan antara kawasan kerja yang berbeza. "Pengangkat meja angkat" juga pilihan untuk kawasan yang tidak tersedia forklift.

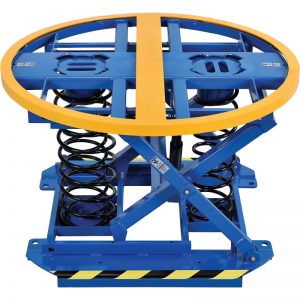

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.

Apakah perbezaan antara Pemuat Beg Udara atau meja angkat gunting bermuatan spring?

• Kestabilan: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
• Kaedah pelarasan gear yang berbeza: the Spring Pallet scissor Lift table  has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
• Julat muatan is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
• Kaedah pelarasan yang berbeza: it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner  needs to be removed from the table to replace the spring collocation to adjust the load.
• Platform beg udara perlu dilengkapi pam udara.

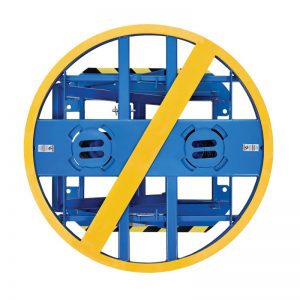

It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
